NAO4*W-A
防水的opticalCON QUAD 电缆延展耦合器（适配器 ）。
 |
 |
 |
|

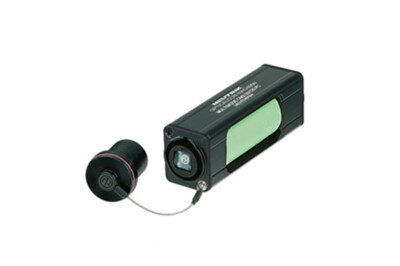

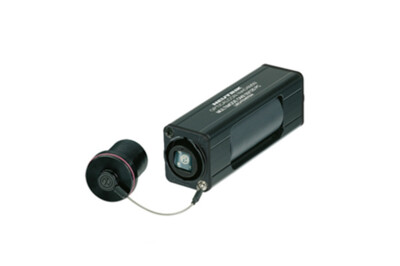

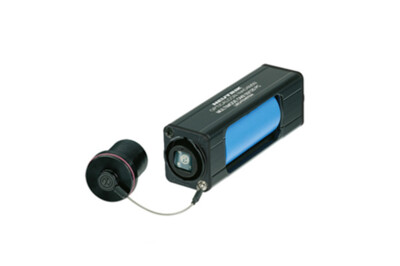

| 产品 | NAO4MW-A | NAO4SW-A | NAO4SAW-A |
| 光纤模式 | 多模 PC | 单模 PC | 单模 APC |
| 颜色 | 黑 | 蓝 | 绿 |
提供交叉接线产品。
Selection of topics
下载
技术信息
Technical Information
| Product | |
| Title | NAO4*W-A |
| Connection Type | Adapter |
| Gender | female |
| Mechanical | |
| Insertion force | < 45 N |
| Withdrawal force | < 45 N |
| Lifetime (typ.) | 1000 mating cycles |
| Locking device | Push-Pull |
| Material | |
| Insert | Polyamide (PA 6, PBT 30 % GR, PBT 50 % GR) |
| Shell | AlMgSi 0.5, black plated |
| Split sleeve | ceramics |
| Environmental | |
| Temperature range | -30 °C to +80 °C |
| Protection class | IP65 |
| Optical | |
| Insertion loss | < 0.4 dB / connection |
| Optical connector | LC |
