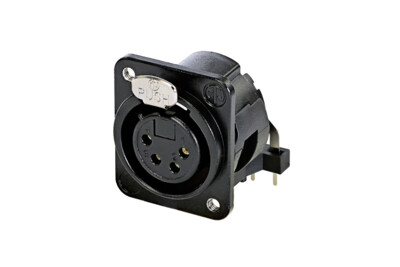

NC4FDM3-H-BAG-1
4芯母头底座，水平PCB安装面板，镀黑外壳，镀银触点，M3 安装孔
紧凑的全金属外壳，独创的双接地触点，提供出色的射频保护和屏蔽保护。
内芯无法拆卸！
Selection of topics
特征和性能
下载
技术信息
特征和性能
- 全金属外壳，提供最佳的射频防护和电磁屏蔽
- 双接地触点，确保底座和电缆连接器间极佳的连接完整性
- 可选安装，轻松将触点1连接到底座接地
- D 型外壳兼容行业标准D型安装尺寸
- 内芯无法拆卸
- PCB安装面板终端
Technical Information
| Product | |
| Title | NC4FDM3-H-BAG-1 |
| Connection Type | XLR |
| Gender | female |
| Electrical | |
| Capacitance between contacts | ≤ 7 pF |
| Contact resistance | ≤ 5 mΩ |
| Dielectric strength | 1.5 kVdc |
| Insulation resistance | > 10 GΩ (initial) |
| Rated current per contact | 10 A |
| Rated voltage | < 50 V |
| Mechanical | |
| Insertion force | ≤ 20 N |
| Withdrawal force | ≤ 20 N |
| Lifetime | > 1000 mating cycles |
| Wiring | Horizontal PCB mount |
| Locking device | Latch lock |
| Mounting direction | Rear mounting |
| Chassis shape | D |
| Mounting | Mounting holes with M3 threads |
| Material | |
| Contact plating | Ag |
| Contacts | Brass (CuZn39Pb3) |
| Insert | Polyamide (PA 6.6 30 % GR) |
| Locking element | Steel Ck67 |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | Black chromium |
| Environmental | |
| Flammability | UL 94 V0 |
| Temperature range | -30 °C to +80 °C |
